ZCorp Z310+

What is it?

The ZCorp Z310+ is a powder bed printer, designed to run a variety of powders and binders through HP10 printheads.

The Z310 was discontinued in 2011. ZCorp was absorbed by 3D Systems on Jan 3, 2012, and as on February 10, 2016, 3D Systems has ended all warranty and support for it.

The HP10 printhead can often be found as 'new old stock' on eBay or industrial supply dealers.

•

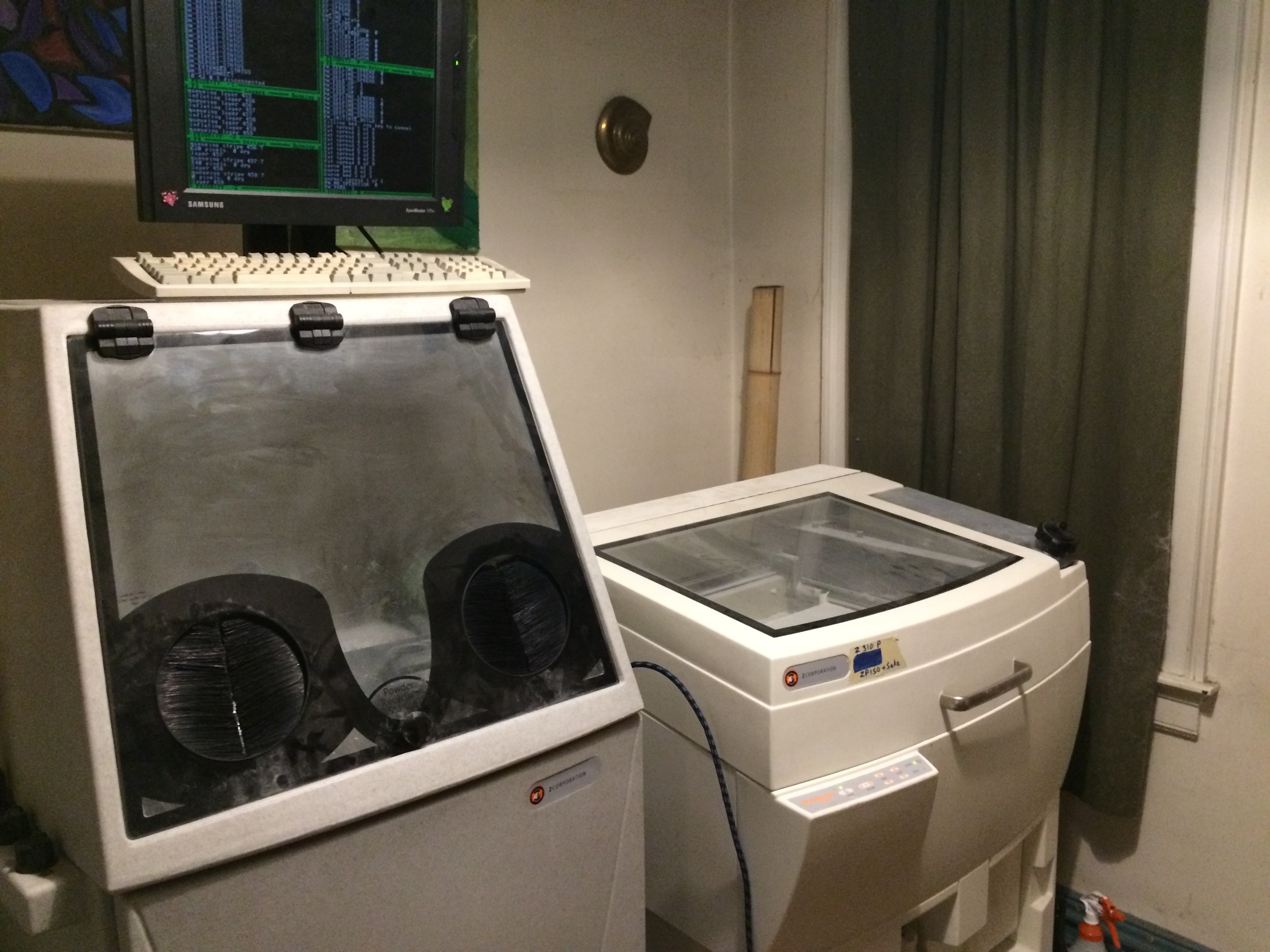

  Z310+ printer and depowdering station

For more details, please contact me at:

Modifications

Some 3D printable modifications (such as a binder tubing clip) are available on my https://github.com/ezrec/zcorp-mods GitHub repository.

Fast Axis Powder Sealing

The fast axis electronics box can get quite dusty. With some single-sided self-sticking compressible foam insulation tape (used for weatherproofing windows), you can easily reduce the amount of dust in the electronics box.

1. Remove the metal shrouds on the fast axis electronics box.
2. Using compressed air, blow out any existing dust in the electronics box.
   • DO NOT VACUUM - the act of vacuuming can cause ESD damage to the electronics!
3. Wash and dry the metal shrouds.
4. Apply single-sided self-sticking compressible foam insulation tape, as per the gallery images below.
5. Reassemble the fast axis electronics shrouds.

•

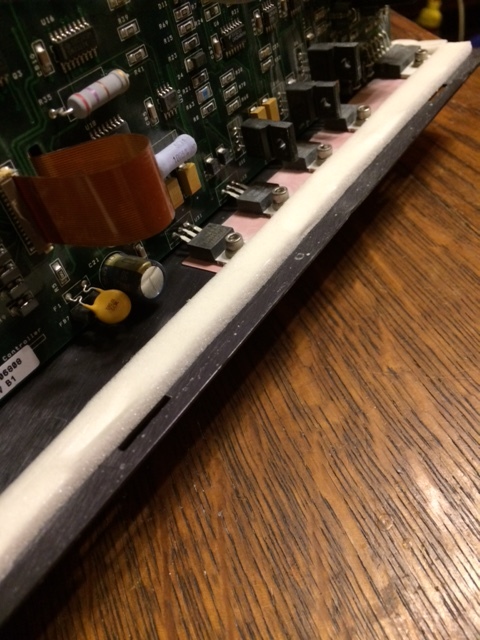

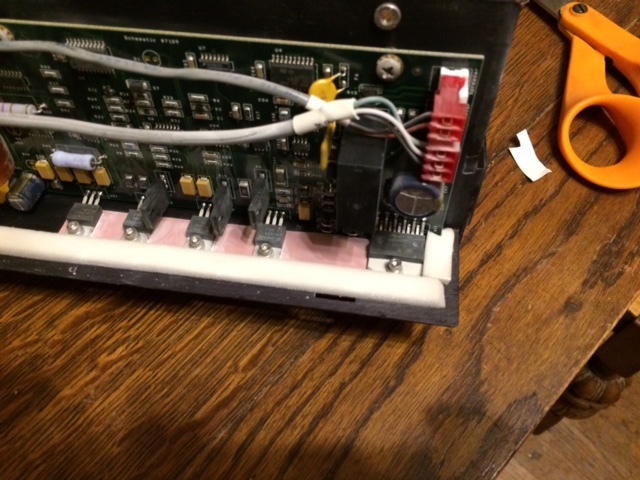

  View of foam tape of the electronics box

•

  Alternate view

•

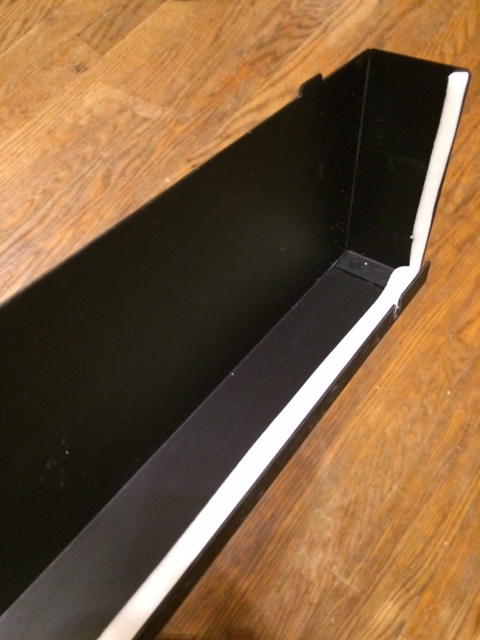

  Tape, as applied to the front shroud.

•

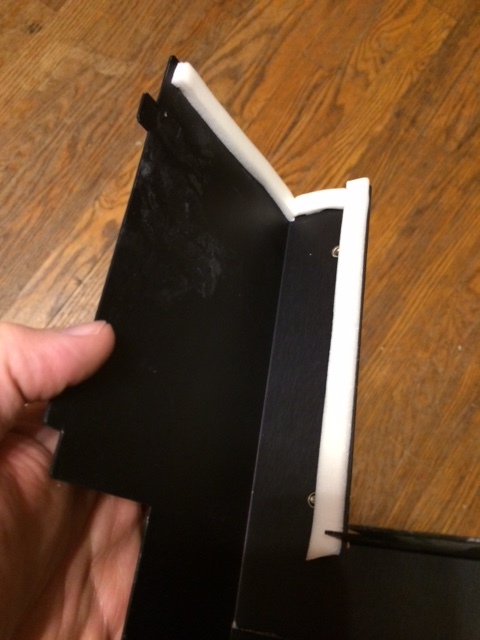

  Tape, as applied to the rear shroud.

•

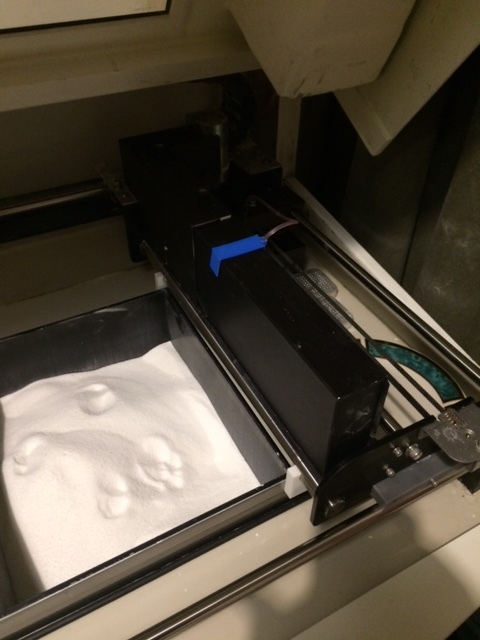

  Assembled and cleaned shrouds.

Head-Change Drip Plate

This is a very easy mod - just put a saucer under the 'change head' location on the bed, to catch any binder drips when you are changing the head, or purging the binder lines.

•

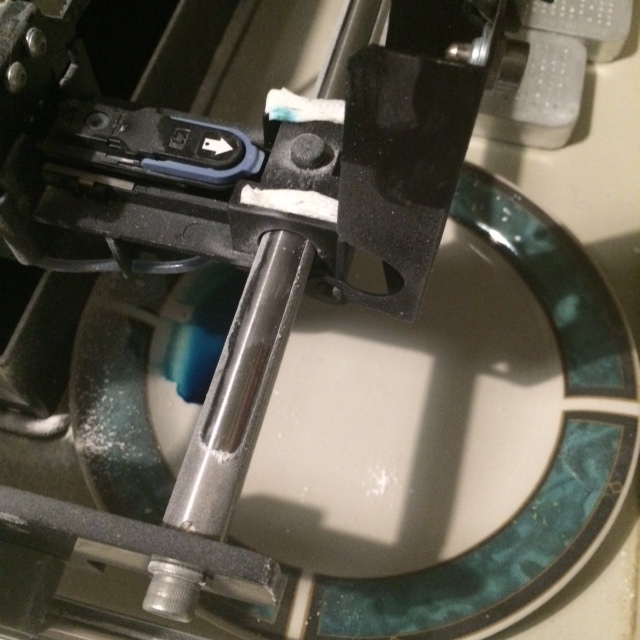

  A small saucer to catch binder drips.

ZD5 Depowdering Station: Vortex Dust Collector

The ZD5 Depowdering station uses a bag vacuum in its base to collect the powder cleared from the station. As the bag fills with pwoder, the ZD5 vacuum loses suction over time.

Removal of the bag and cleaning the powder out of it for recycling is dusty and messy. This modification reduces bag change intervals significantly, and makes it much easier to recycle the powder.

A number of vendors sell DIY vortex dust collection systems for wood shops, and these work very well in combination with the ZD5's powerful vacuum. The one in the example is a DIY kit from Oneida Air Systems, purchased from a local hardware store for $50 USD.

Assemble the vortex collector as directed by the manufacturer, and place in-line with the ZD5 depowdering station's vacuum hoses. Only about 5%-10% of the powder ends up in the vacuum bag, extending the amount of time between bag changes - the bulk of the powder will end up in the vortex collector's bucket, easily removed, sifted, and recycled.

•

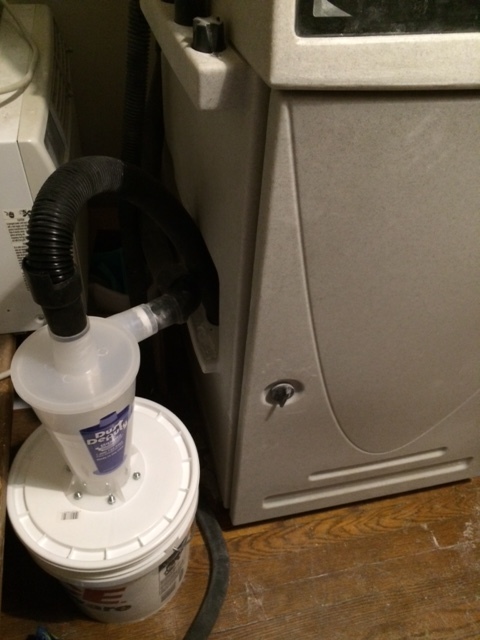

  ZD5 with a vortex dust collector attached.

•

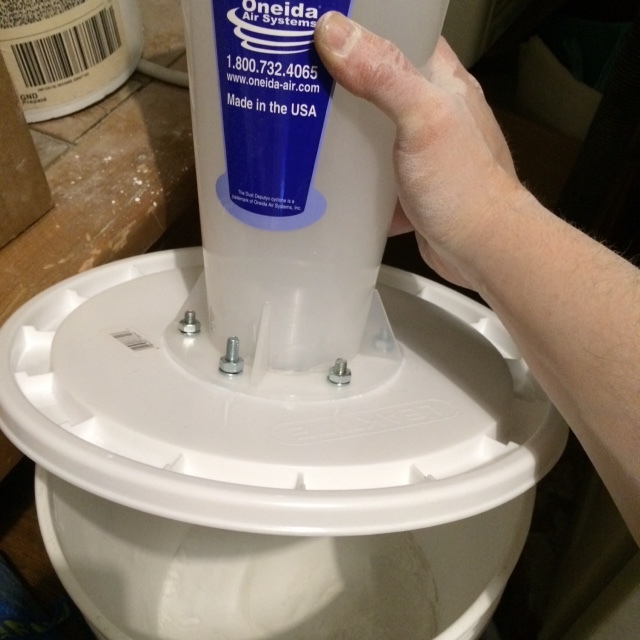

  Dust ends up in the bucket - not in the bag!

Materials

Sake (Rice Wine) Binder

I use Sake (Japanese rice wine) as a binder. It is available in gallon jug - make sure to get the unflavored variety, and aim for 15%-20% alcohol content.

Color and Flavor Additives

Small amounts of colors and flavors can be added to the sake binder, but don't overdo it.

If the physical properties (viscosity and surface tension) are altered too much, the nozzle flow rate will be too low, and you can risk burning out the printhead.

Adjust your binder mixture slowly, until you see streaking, then add plain sake to dilute it back to a workable mixture.

•

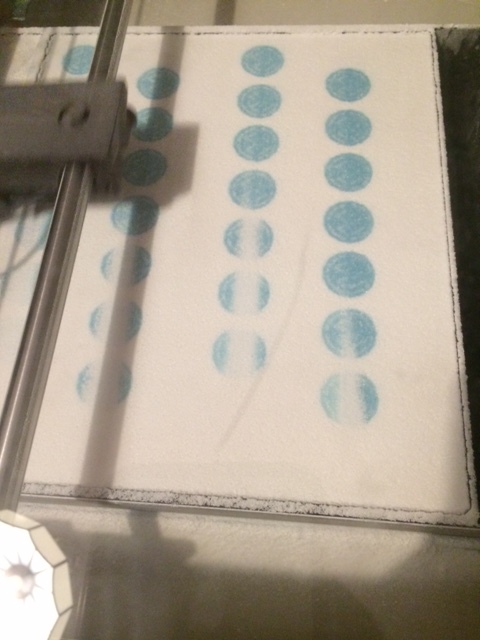

  In this example, too much flavoring (orange extract) was added, leading to the streaking observed.

•

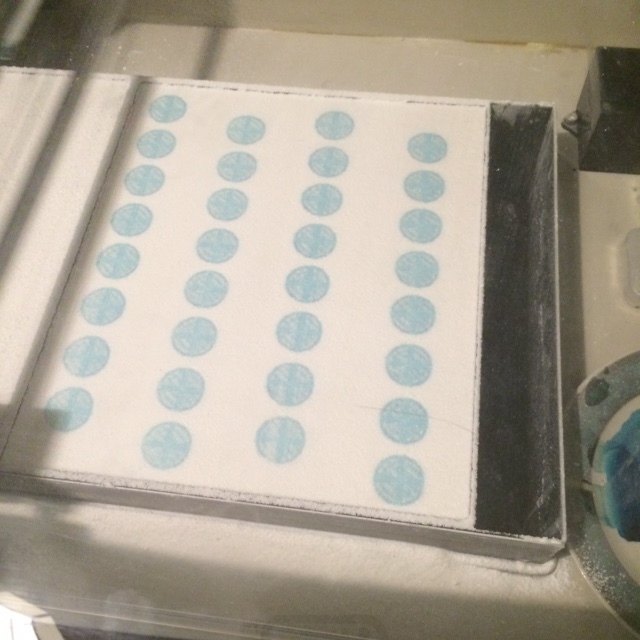

  Diluting the binder with more sake resolved the issue.

Powder Theory

My current running theory is that a 'good' powder mix needs the following characteristics:

• A 'bulk' insoluble material which does not change size when wetted (like the gravel in cement)
• A binder soluble adhesive, which binds the bulk together.
• A wicking agent, to decrease powder surface tension, and pull the binder into the layer from the surface
• A hydroscopic agent, to prevent the binder from spreading by capillary action into the unprinted area.

A good powder can have separate agents for these characteristics, or some agents can perform multiple actions.

Material Characteristics

Material	Bulk	Adhesive	Wicking	Hydroscopic	Comments
Superfine Sugar	Good	Fair	X	-	Stick to the spreader without a starch added.
Plaster of Paris	Strong	Weak	-	-	Excellent base, add maltodextrin and PVA to make DIY ZP-151
Corn Starch	Fair	-	-	X	Good for improving spreadability of sugar based powders
Maltodextrin	-	-	-	X	Excellent hydroscopic agent
PVA Powder	-	Strong	-	-	Excellent adhesive for non-edibles
Meringue Powder	-	Good	-	-	Good adhesive for edibles
Tapioca Powder	Fair	-	X	X	Very easily spread, very absorbent
Wheat Flour	Good	-	X	X	Good bulk material for edibles

ZP-150

What Works

When I have it, I run ZP-150 plaster powder at 0.1mm layers.

It's a very expensive material, so I tend to save it for comparison tests against my home-made powders.

Sugar Powder Recipes

This is a very inexpensive (about $1 USD/kg) medium, and is nice for non-durable pieces.

I highly recommend adding a dye to your binder (food coloring works well) so that it easier to determine where the surface boundaries are when depowdering.

NOTE: The ZCorp 310+ is _not_ a food-safe device, and the printed results are not edible.

What Works

EZSpread Powder

This recipe spreads much more easily than the base powder, so you do not need to remove the scraper blade. However, the easily wetted powdered sugar requires that the saturation level of the derived powder must be lower to prevent bleed-through when spreading the new layer.

• Granulated sugar, 25lb
• Wilton's Meringue Powder, 8oz
• Diamond 10-X Powdered Sugar, 64oz (super fine sugar powder + corn starch)

Mix together, then pulse in a food processors (about 1lb at a time, or however much your food processor will hold) for approx 120 seconds total, until the powder is at a fine grain consistency.

• Derive a new powder in ZPrint from the ZP-15E base powder
  • Set saturation to 80% for shell and core.
• Print at 0.2mm per layer.
• Cure 'in bed' for at least 8 hours before removal.
  • Shell will be hard enough to handle air depowdering and manual brushing
  • Core material will still be soft.
• Part will continue to harden for 48 hours (depending on temp & humidity)
  • Shell will be hardened in about 12 hours
  • Core material fully hardened after 48 hours

Make sure to *thoroughly* clean the roller with a dry paper towel after each print.

•

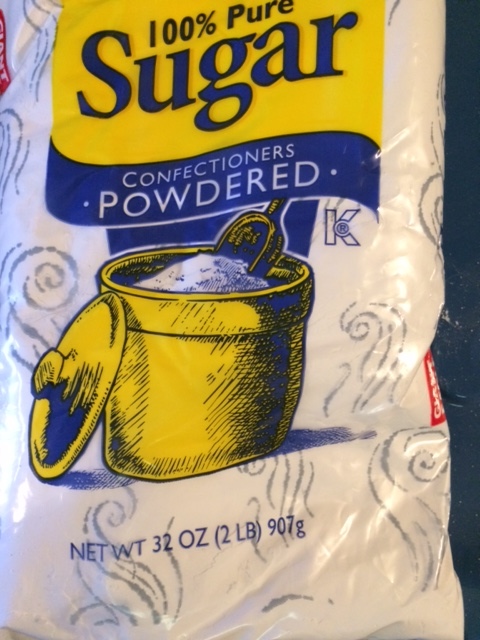

  Two bags of 10-X powdered sugar are added to the base mix.

•

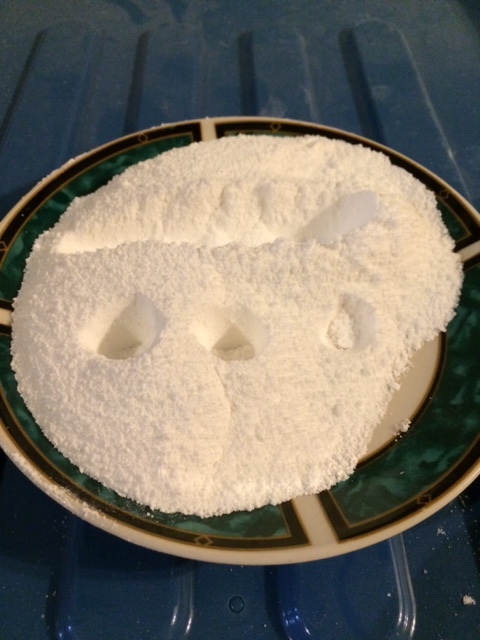

  Consistency test of the powder. Note that it holds its shape better than the base powder.

•

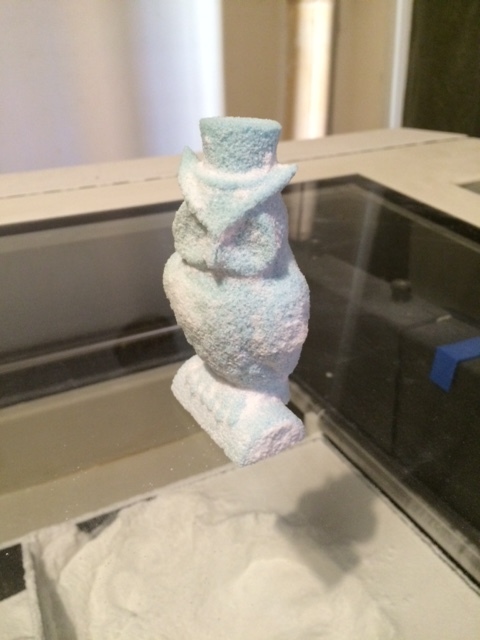

  Owl print. Much better fine detail than the base powder.

•

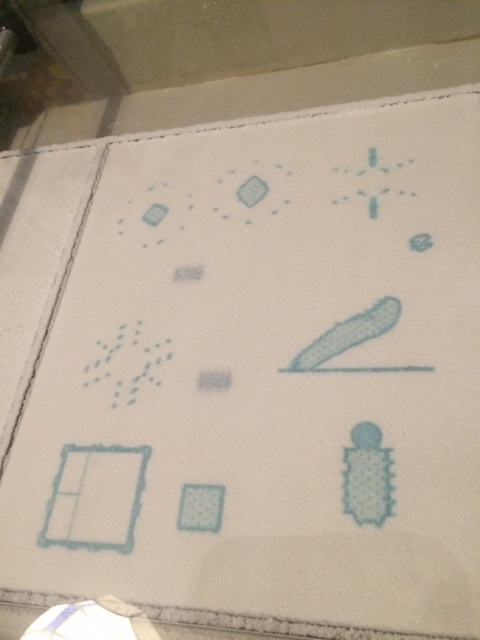

  EZSpread, handling a complex build plate.

Post Processing

After depowdering, lightly mist with distilled water, and dry in a 90C oven for one to two hours.

For permanent display, or lost wax casting, the sugar powder object can be infiltrated with paraffin wax.

•

  Owl model, after light depowdering.

•

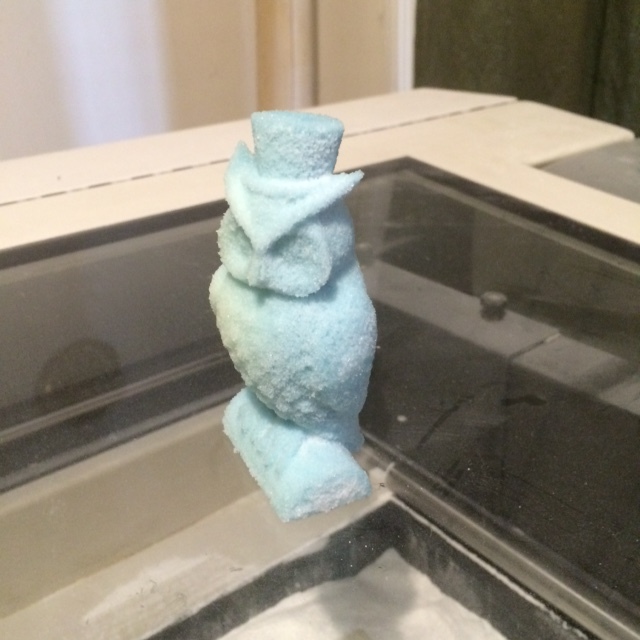

  Sprayed with distilled water, and held in 90C oven for 1 hour.

•

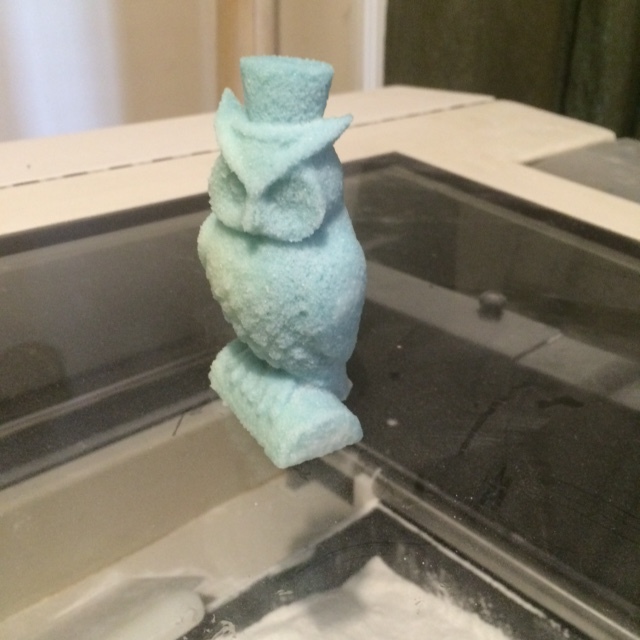

  Owl after infiltration with wax.

What Doesn't

Granulated Sugar Powder

Experimental powder, using the following recipe:

• Granulated sugar, 25lb
• Wilton's Meringue Powder, 8oz

Mix together, then pulse in a food processors (about 1lb at a time, or however much your food processor will hold) for approx 120 seconds total, until the powder is at a fine grain consistency.

• Remove the scraper blade from the roller portion of the fast-axis assembly.
• Derive a new powder in ZPrint from the ZP-15E base powder
  • Set saturation to 100% for shell and core.
• Print at 0.2mm per layer.
• Cure 'in bed' for at least 8 hours.

Make sure to *thoroughly* clean the roller after each print - it can get very sticky otherwise.

.. but they sure look cool, and sugar is a heck of a lot cheaper than ZP-150.

•

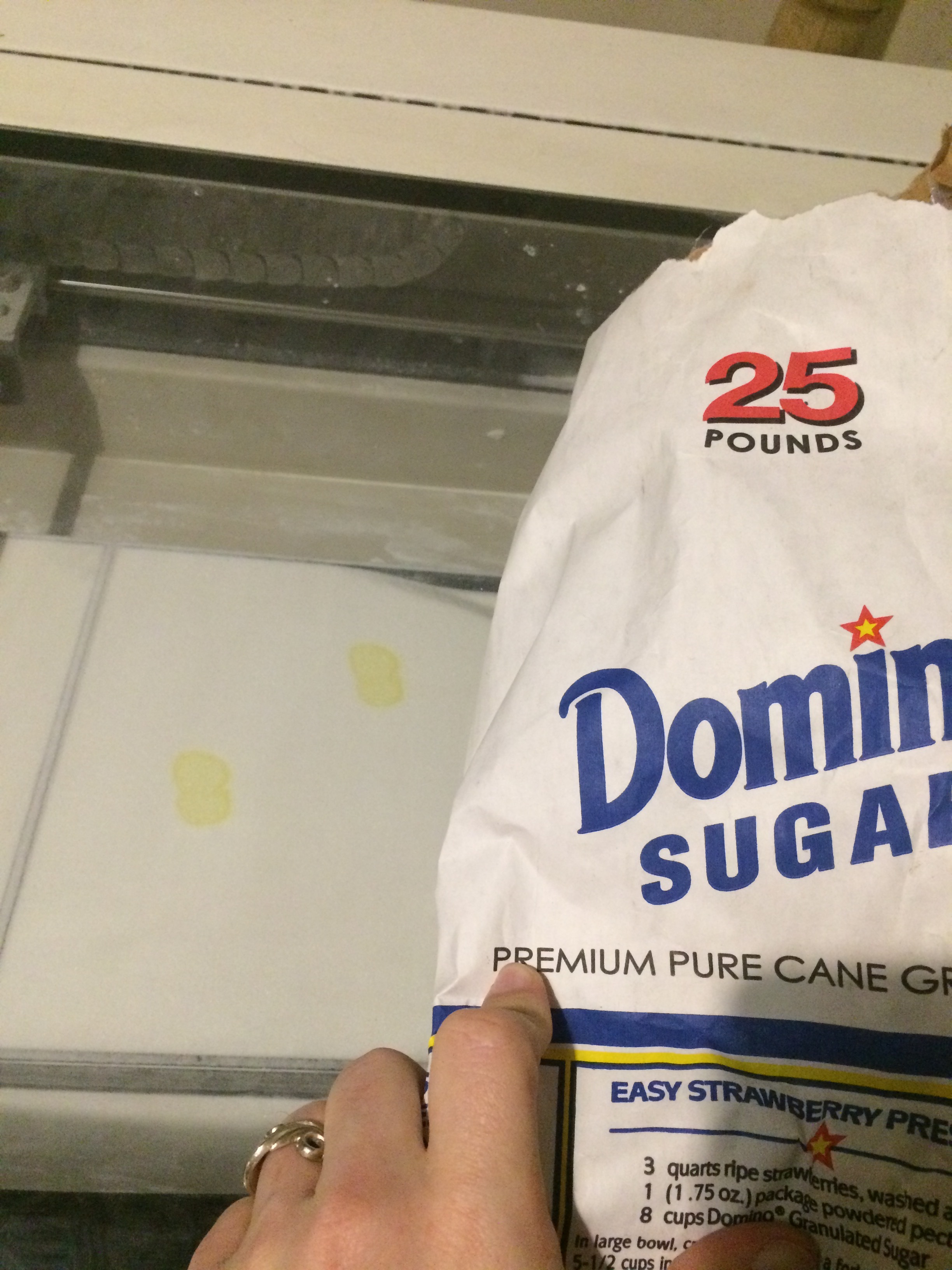

  25lb of sugar - $20 USD

•

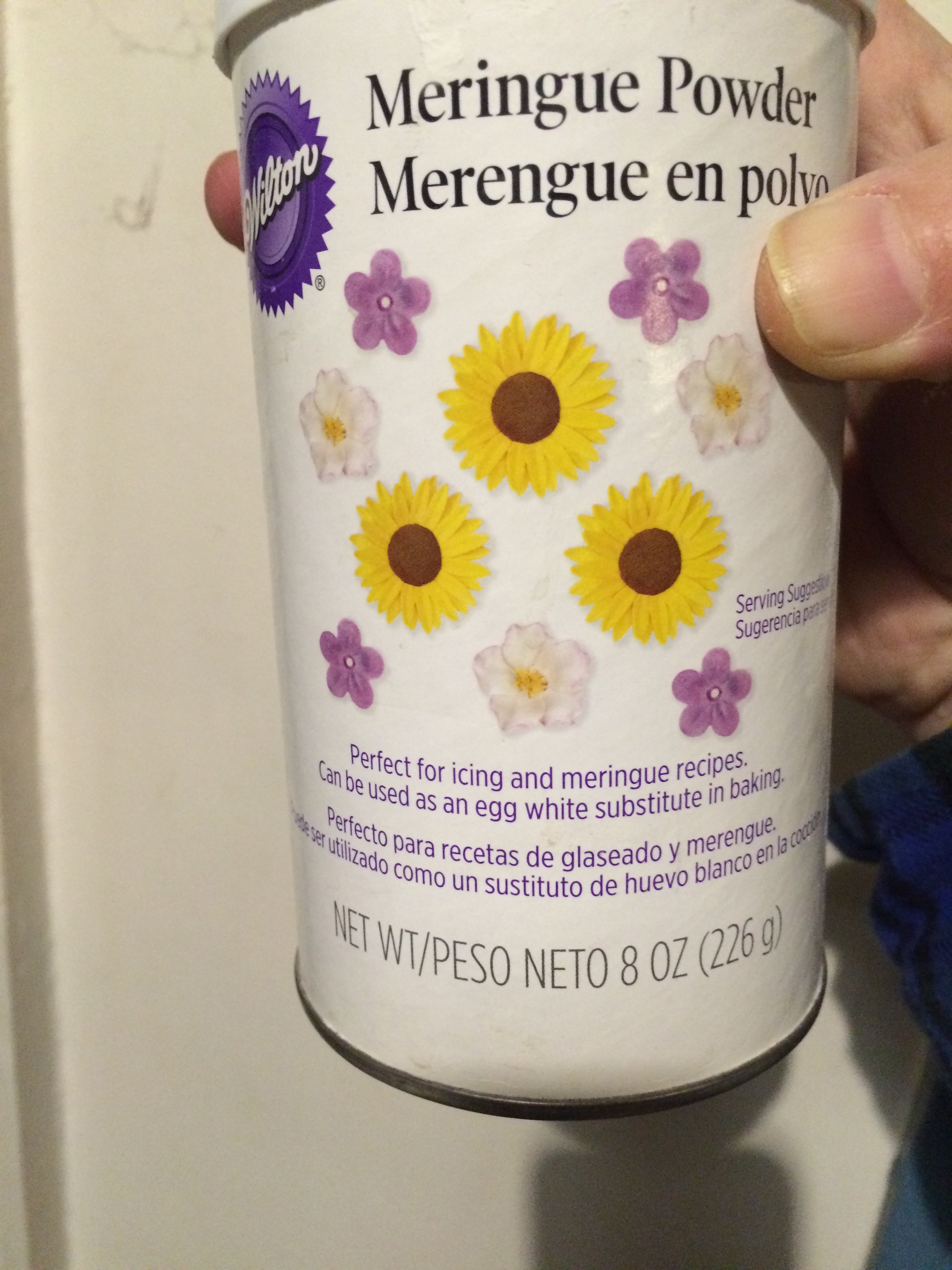

  8oz of meringue powder - $10 USD

•

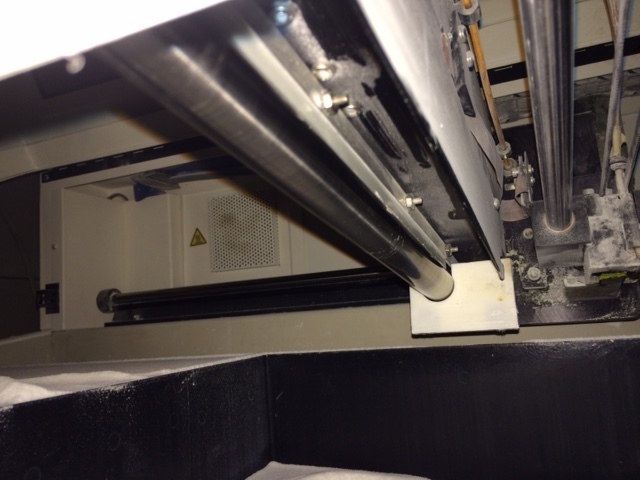

  Location of the scraper blade - 3 hex bolts hold it in - 2 in rear of slow axis, 1 in front.

•

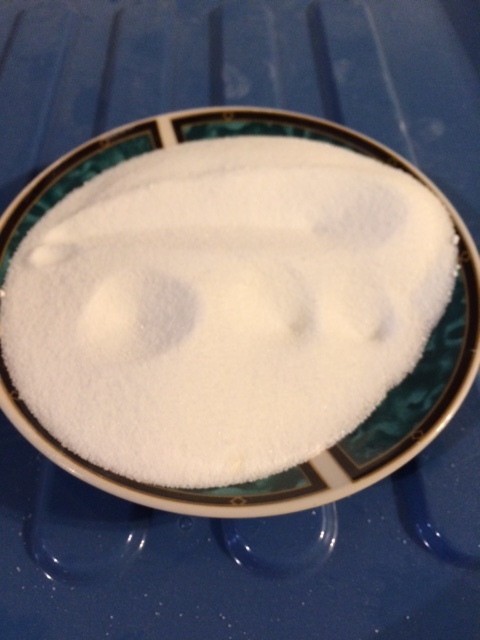

  Base sugar powder consistiency

•

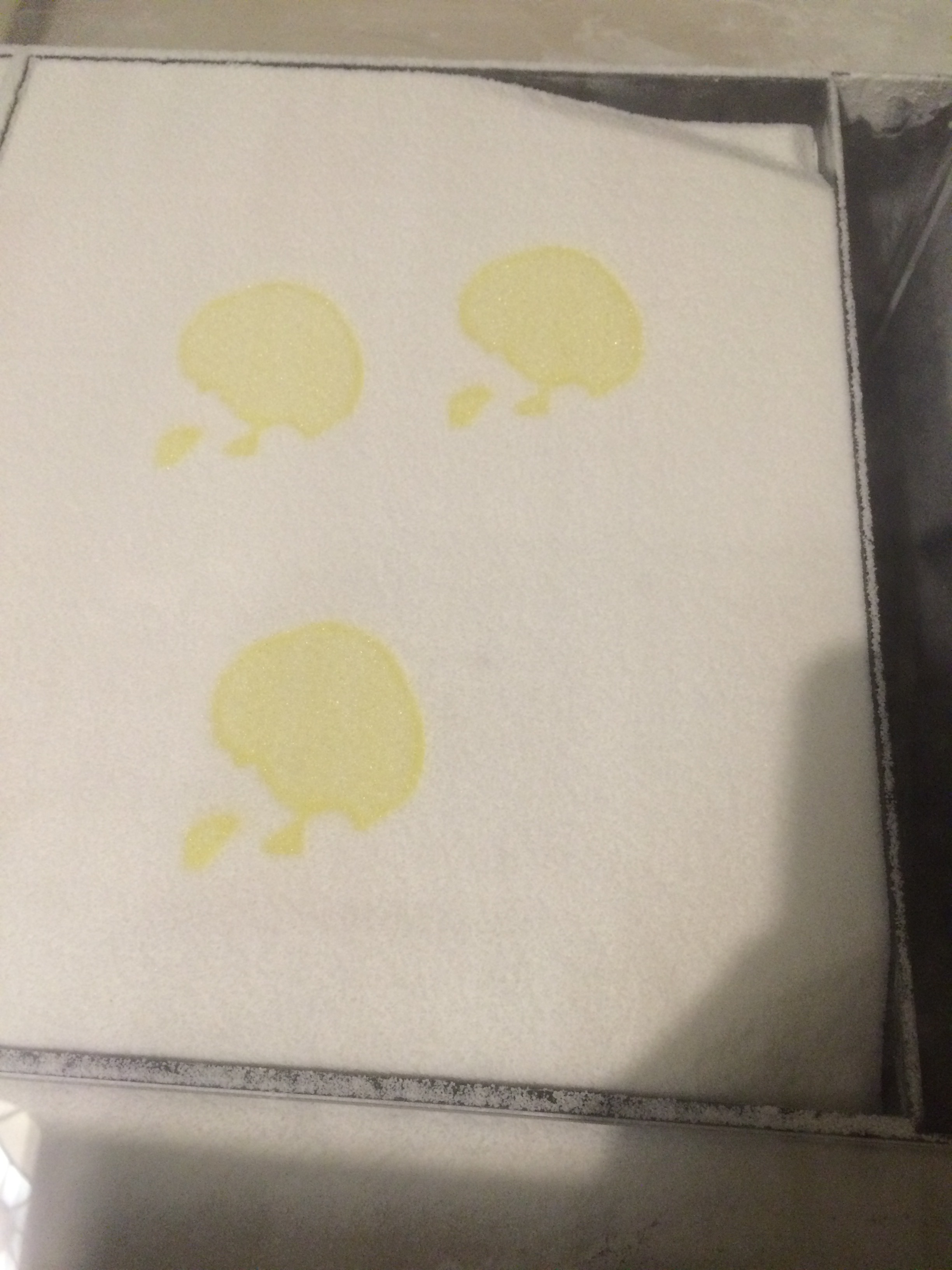

  Printing out sugar skulls

•

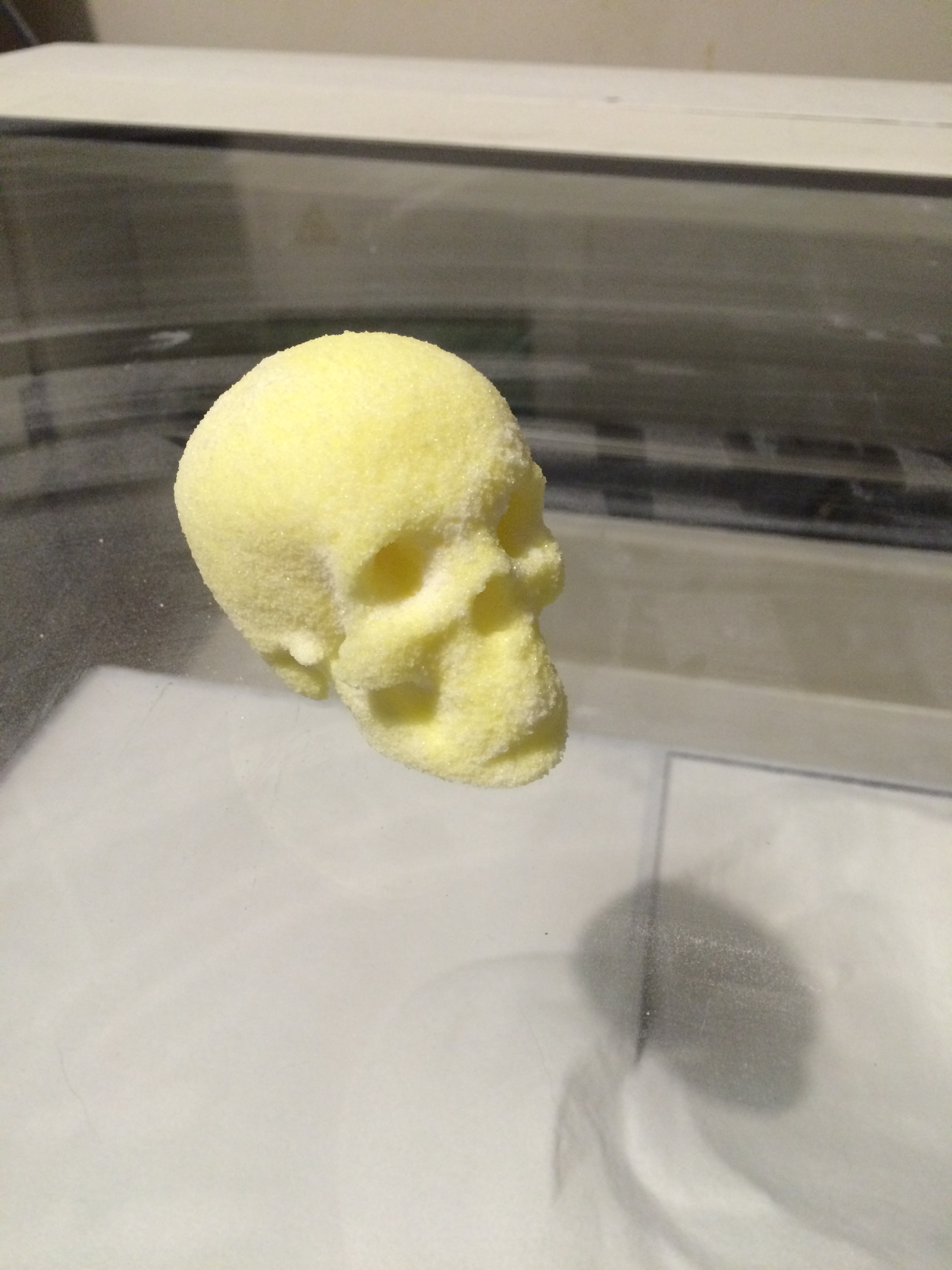

  Printed sugar skull!

EZSpread + Maltodextrin (96oz)

Adding 96oz of maltodextrin to the EZSpread material resulted in a powder that spread very easily, (2mm at 80% or lower saturation), and resulted in accurate parts with fine detail...

However...

• Attempting to use a saturation over 80% caused the roller to 'pick up' the previous layer, and scrape the layer over the part bed
• Resultant parts had an extremely low green strength, and after 24 hours had even less - they began to crumble simply due to gravity

RESULT: FAIL!

USG Hydrostone Super-X

USG Hydrostone Super-X is a fine gypsum powder, with a light tan color. It has an extremely low 'mix consistiency' of 100 to 22, and is a very fast setting plaster.

WARNING: As USG Hydrostone contains powdered silica, extreme care must be taken with dust management, as exposure to powdered silica can lead to untreatable siliconosis.

What Works

Hydrostone 12:1:1:1

Binder setting: ZP-140

• 12 units Hydrostone Super-X
• 1 unit PVA powder
• 1 unit Maltodextrin
• 1 unit Powdered sugar (with cornstarch)

Very good spread, with no "roller drag" on the freshly printed layer.

Good green strength after 1 hour in the bed.

A very low amount of clumping of unprinted powder around the finished part, typically in inner cavities.

Very little dimensional bleed.

•

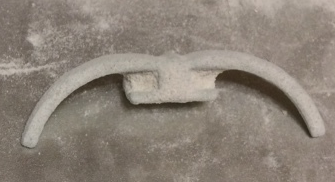

  Sample part, air depowdered only

What Doesn't

Hydrostone 1:0:0:0

Binder setting: ZB56/ZP102

• Hydrostone Super-X, straight out of the bucket

Good spread, but some slight "roller drag" on freshly printed layers.

Part was not removable, after even 6 hours. All moisture wicked into the unprinted powder, leaving the printed part without sufficient moisture to slake.

Hydrostone 36:4:1:3

Binder setting: ZB56/ZP102

• 36 units Hydrostone Super-X
• 4 units PVA powder
• 1 unit Maltodextrin
• 3 units Powdered sugar (with cornstarch)

Very good spread, with no "roller drag" on the freshly printed layer.

Damp and crumbly after 1 hour

Weak green strength after 6 hours in the bed.

A significant amount of clumping of unprinted powder around the finished part.

Very little dimensional bleed.

•

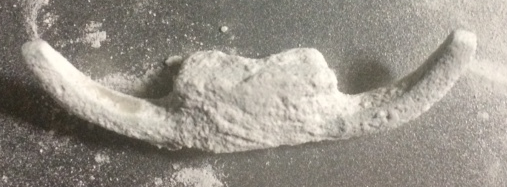

  Sample part, air depowdered only

Hydrostone 12:1:1:1 (wet)

Binder setting: ZB56/ZP102

• 12 units Hydrostone Super-X
• 1 unit PVA powder
• 1 unit Maltodextrin
• 1 unit Powdered sugar (with cornstarch)

Very good spread, with no "roller drag" on the freshly printed layer.

Very weak after 1 hour, but very good green strength after 6 hours in the bed.

A noticable amount of clumping of unprinted powder around the finished part.

Very little dimensional bleed.

•

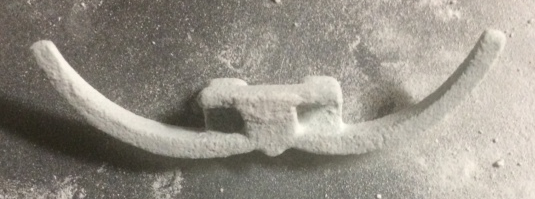

  Sample part, air depowdered only

Maintenance

Front Panel Removal And Cleaning

Removing the front panel allows full access to the piston screw for lubrication, and removal of dust and debris from the debris catching tray under the pistons.

•

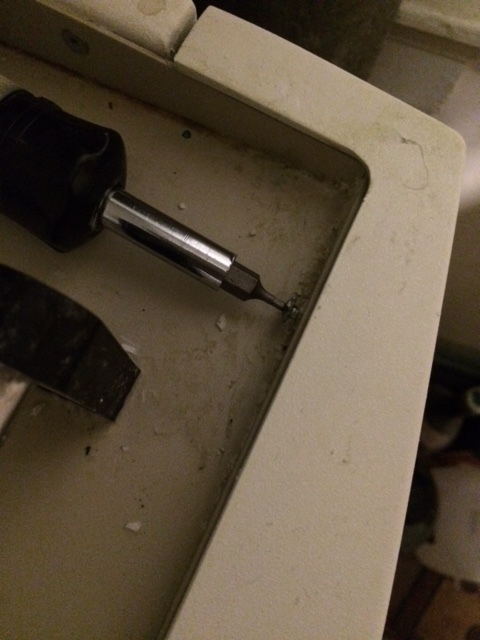

  Locate and remove the 2 hex screws retaining the front panel.

•

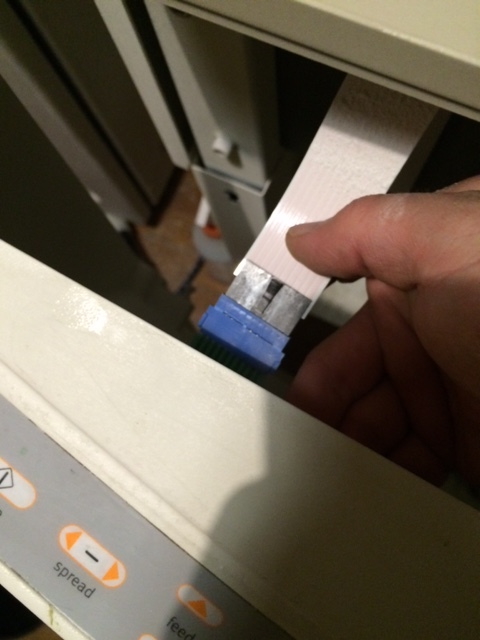

  Lift the front panel approx 5cm, and pull away about 50cm. Unplug the LCD panel

•

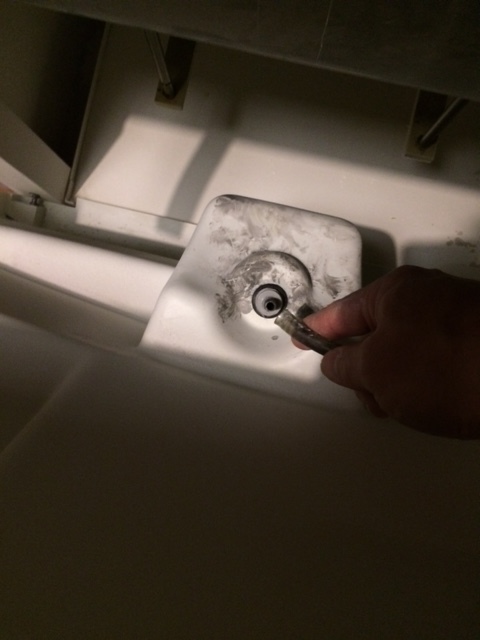

  Pull off the waste bottle hose.

•

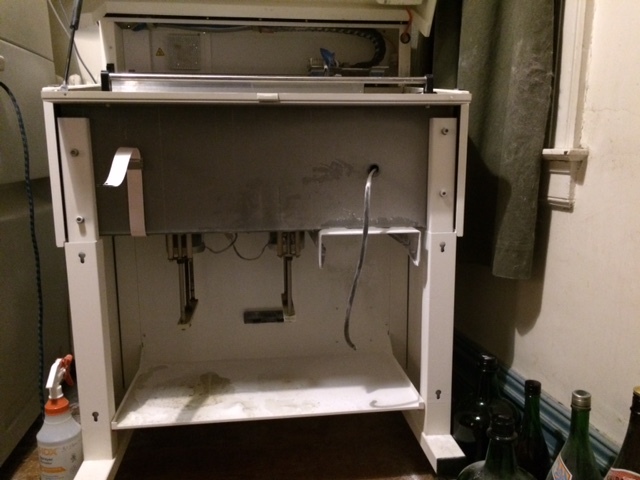

  The front panel removed.

Low Binder Flow

Low binder flow can be caused by many problems - follow this checklist to resolve them:

• If you can push binder via the binder flush kit, but pulling binder is difficult:
  • Check/replace the quick-fit connectors on the back of the fast axis.
    • CPC Part Numbers SMFD01 and SMMPM01
  • Check/replace the quick-fit connector to the binder tank
    • CPC Part Numbers PMCD1602 and PMCD2302
  • Check/replace the filter unit behind the binder tank
• If pushing/pulling binder is equally difficult:
  • Remove the printhead
  • Use the purge kit to flush the binder lines with a 5% household bleach to 95% distilled water solution.
  • Leave the solution in for at least 12 hours
  • Use the purge kit to flush the binder lines with 200ml of distilled water
  • Use the purge kit to load the binder lines with clean binder

•

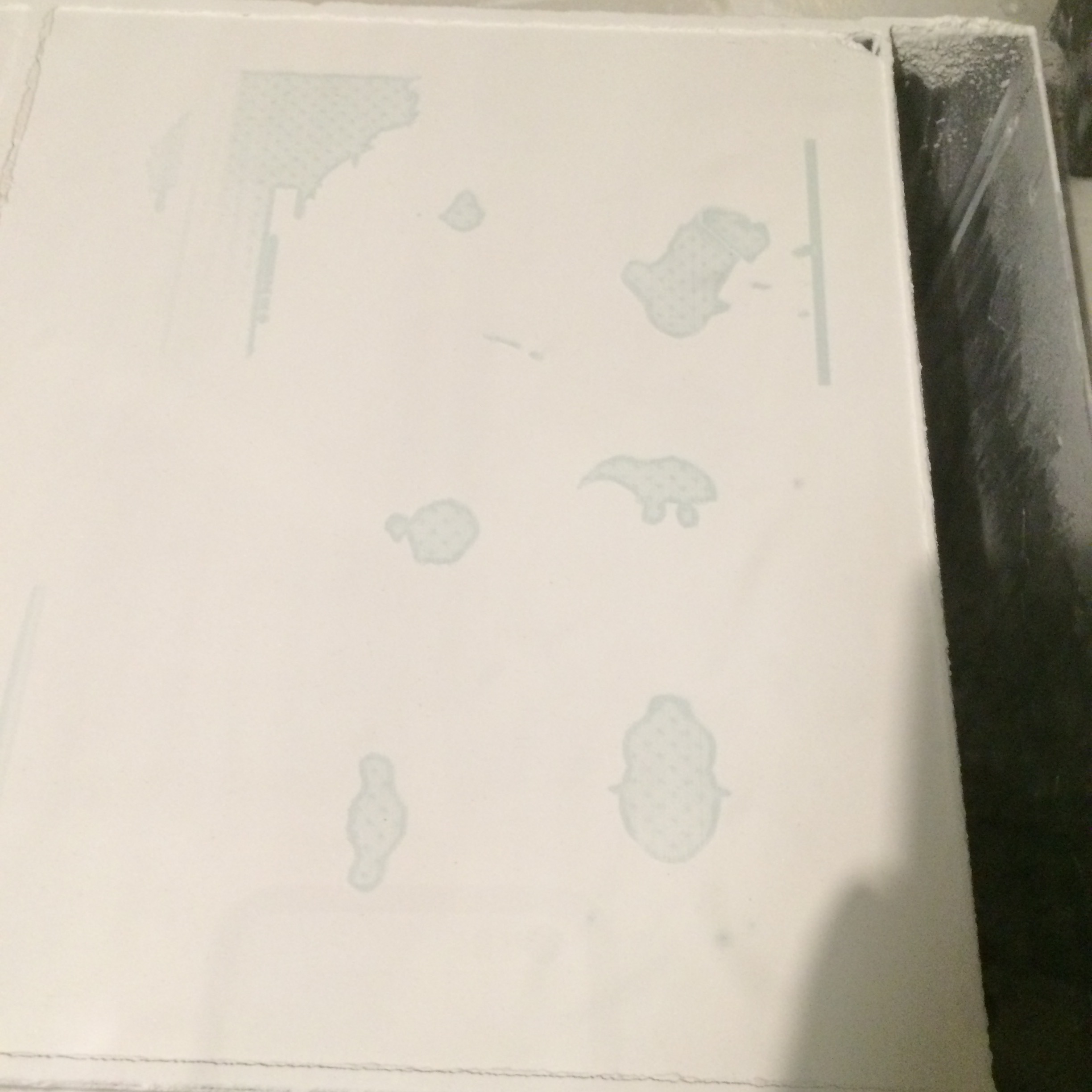

  Low flow issue, notice the partial print in the upper left corner.

•

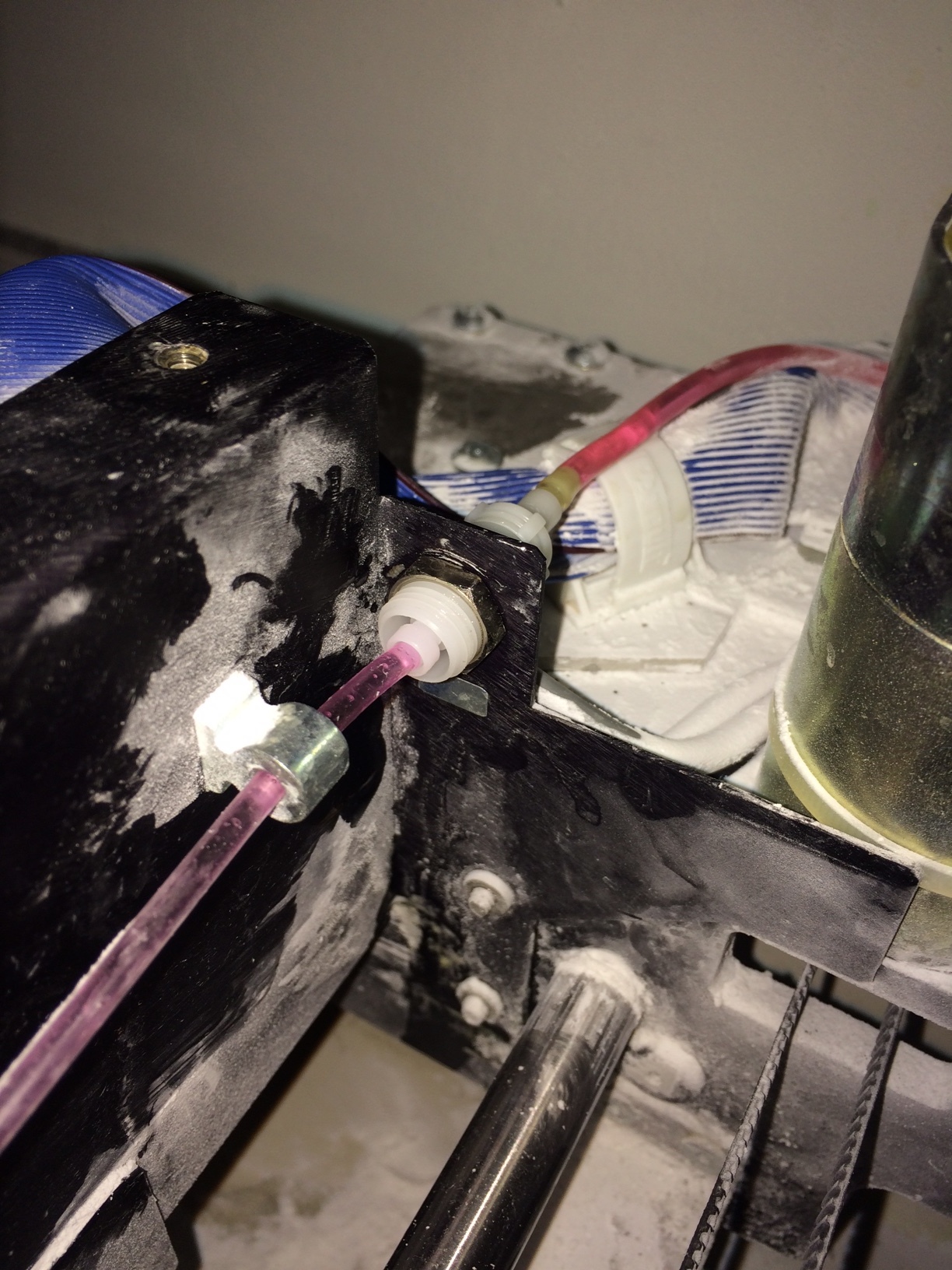

  Location of binder 'quick-fit' connector that had worn.

•

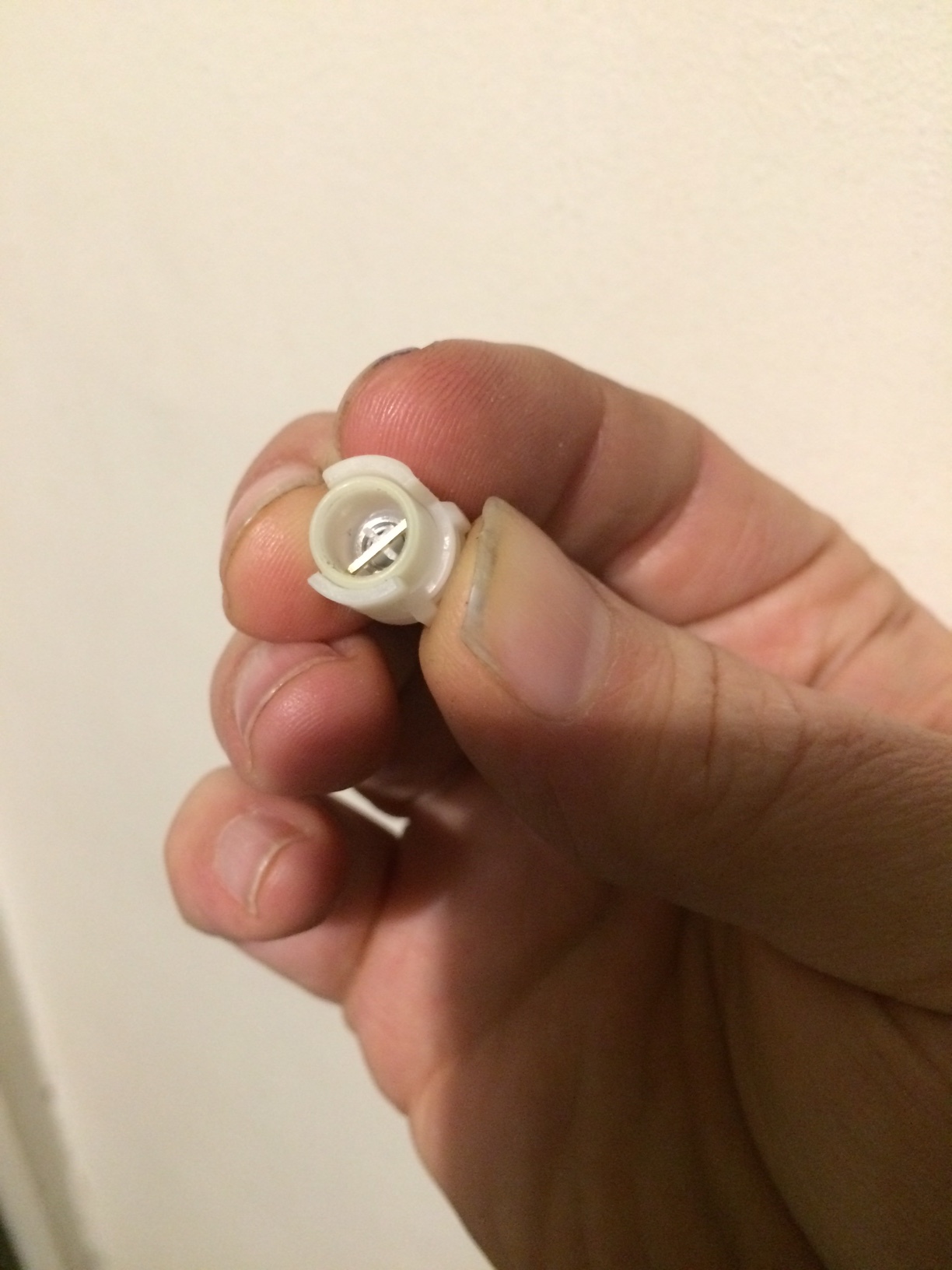

  Shim installed in connector, to resolve flow issue.

Printhead Commissioning Procedure

I have noticed on dead printheads that the mesh filter in front of the inkjets were clogged with black ink particles. They appear to have precipitated from the black ink when my sake binder mixed with old ink still in the cartridges.

I have developed the following procedure to flush a 'new' printhead with a dye based ink, to clear out the black pigment, before using my sake binder. This eliminates the flocking issue.

1. Press 'N' on the console to begin the procedure
2. Remove the old printhead
3. Empty the binder tank into a spare clean container, and reinstall
4. Load the binder flushing kit syringe with 30ml of yellow dye based HP10 bulk ink
5. Install the binder flushing kit into the septum.
6. Push the 25ml of dye into the septum
7. Remove the binder flushing kit
8. Empty any ink in the binder tank, rinse with distilled water, fill with binder, and reinstall
9. Install a new HP10 printhead
10. Press the 'online' button
11. Print a 100x100x20mm block to flush the printhead with the dye-based ink, and transition to sake binder

ZP150 Infiltration/Finishing Techniques

Wax Infiltration

Wax infiltration uses paraffin or beeswax to fully infiltrate the part, adding strength and moisture resistance.

Advantages

• Part is waterpoof
• Preserves fine details

Drawbacks

• Low finished part strength (but higher than 'green' strength)
• Part must be painted before wax is applied
  • Painted parts will have matte, waxy finish

Procedure

• Cure green part at 90C for 4 hours.
• Paint part with watercolors.
• Cure painted part at 90C for 2 hours.
• Put part on a wax paper covered plate, next to a small block of paraffin or beeswax
• Put part in 90C oven for 2 hours, or until wax is wicked into part
  • If the part is not fully infiltrated, add more wax and continue to heat at 90C.
• Remove part while still warm, and place on mesh grid to allow any remaining wax to drip off.

•

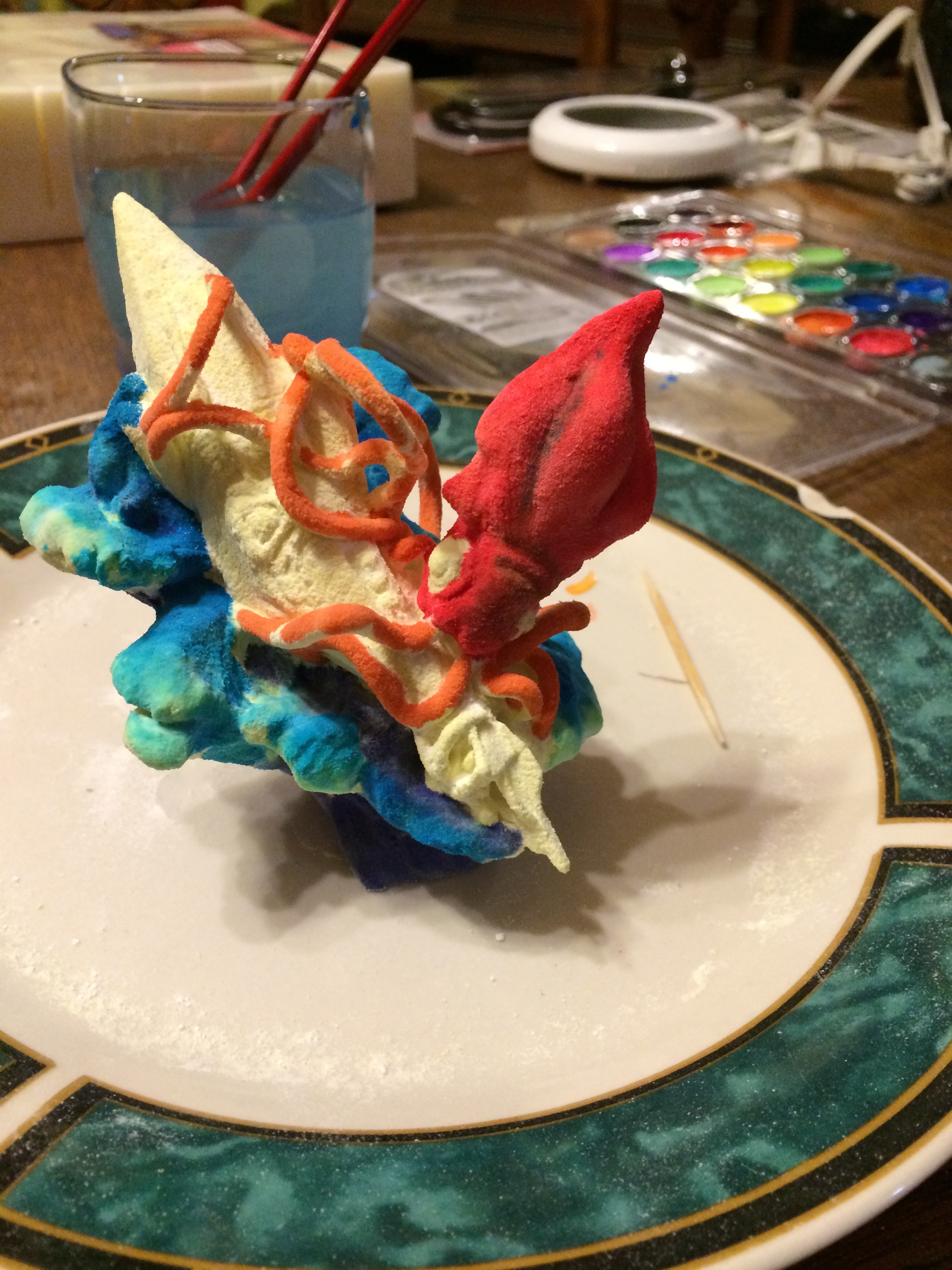

  Using water paints to color the model.

•

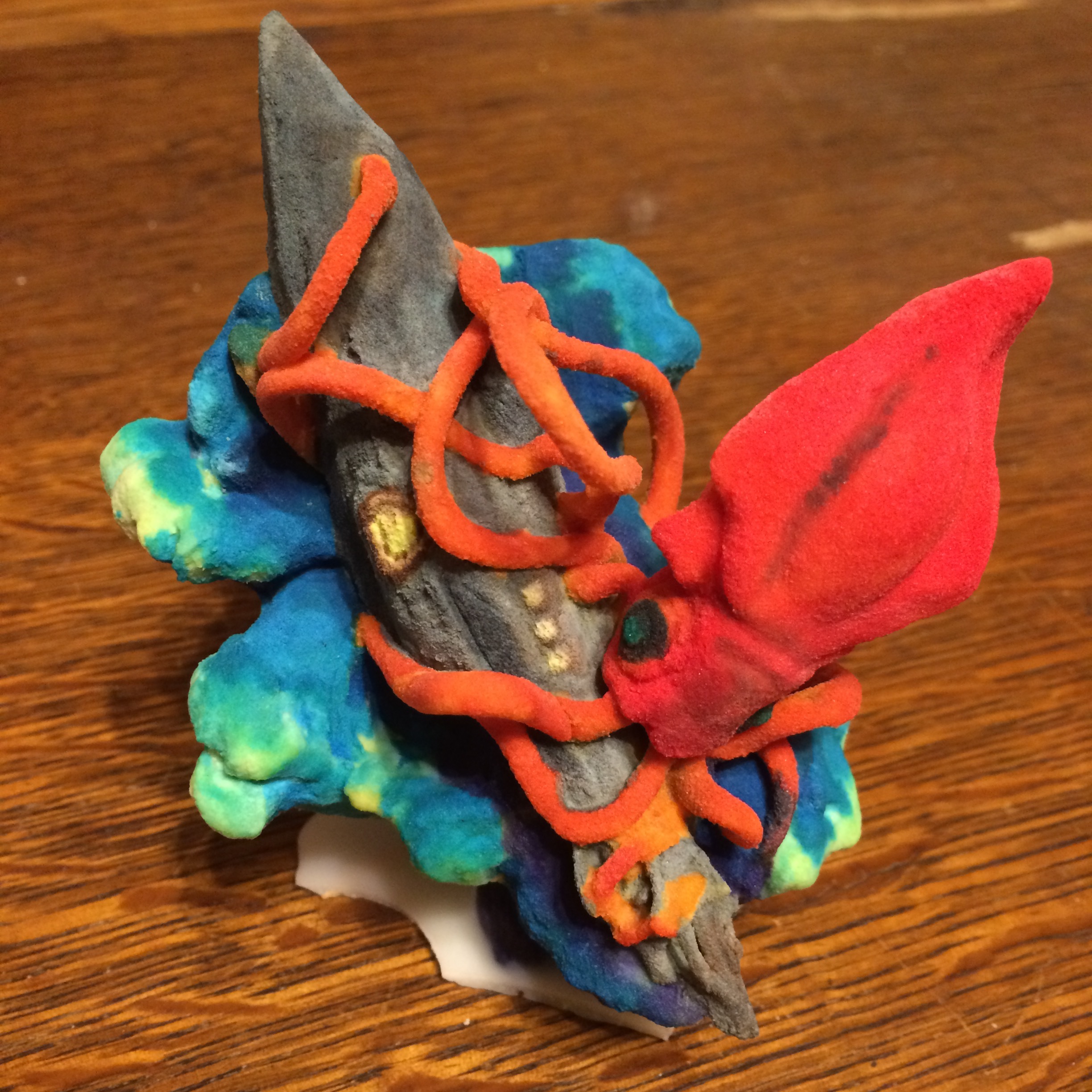

  Finished model after waxing.

Hydraulic Curing

This technique leads to a very high part strength, and the resulting part is waterproof and paintable.

Advantages

• Finished part has a high strength
• Part becomes waterproof
• Part is paintable with acrylics, watercolors, and most other paints

Disadvantages

• Parts with fine details and complex geometries cannot be cured with this method.
• Can leave parts with a high surface roughness

Procedure

• Cover bottom of container with clean, superfine sand
• Put green part in container.
  • Part must have any concavities pointed upwards, to be able to receive sand.
• Sift sand over part until completely covered.
• Tap container until sand is fully packed around part.
• Fill container with water, slowly.
  • As you fill the container, ensure that there is a 'dry' patch on the surface to allow trapped air to escape, until the container is full.
  • Once filling begins, do _not_ move nor shake the container.
• Let container sit for 1 to 2 hours, undisturbed.
• Pour off excess water, and invert container
• Rinse sand off of the part
• Place part in a container of fresh water + 5% distilled vinegar to release surface sand
  • Let sit for 2 hours
• Remove part, and brush off any remaining surface sand
• Let part air-dry for 24 hours
  • Optional: air-dry for 2 hours, followed by drying in a 70C oven for 4 hours.

YouTube video of destructive testing of the resultant part
